Diffraction grating and scattered light

A few days ago I showed the early results for the spectroscopy demonstration I’m working on for my instrumental analysis class. I passed scattered light and collimated light (using an educational kit from Amazon) through a diffraction grating (also from Amazon) and showed that the results were very different. I posed the question in my vlog for my students: why does the scattered light show up as an image of a rainbow while collimated light shows a rainbow projected onto the paper in front of the grating?

Here’s the answer (if you don’t want to watch the answer in video form). collimated beams create a set of collimated rays of different colors which scatter from the paper.

2017-01-11 05_29_03-Krita.png

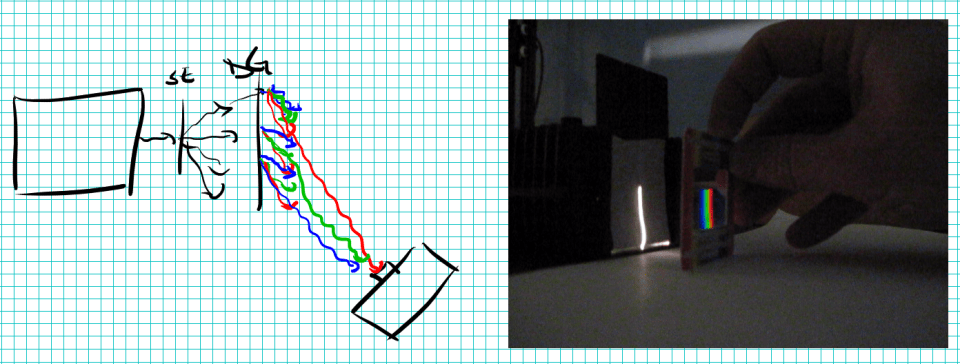

Scattered light can be seen at different angles through the diffraction grating from the same location, so looks like an image of a rainbow.

2017-01-11 05_28_42-Krita.png

For a more thorough explanation, I hope you’ll check out the video.
